Triumph T120 OIF 1971-1972 Rear Mild Steel Unpainted Speedwell Mudguard / Fender PN# 83-3566

$101.41

Availability: In stock

SKU: 633726134331 Categories: , , , Tag: OE Number: 83-3566
Model: TR6-T120
Year(s): 1971-1973
Section: MC8
Radius: inches
Length: inches
Weight: 4

This mudguard is the correct fitment for the 1971 and 1972 Triumph 650 models with painted fenders. Can also be fitted to the BSA A65 and A70 models from 1971 and 1972, although they were originally specified with chrome plated fenders.

The genuine Speedwell mudguard is made in the UK and features the correct ‘D’ shaped profile and indents for the wiring harness and battery carrier clearance. Supplied undrilled and unpainted.

The mudguard serves as the mount for the tail lamp assembly and is supported by a cross bridge between the top shock absorber mounts and a bracket welded to the rear frame loop.

The mudguard is loosely fitted to the mounting points to check alignment and establish the position for the drilled holes. A stepped drill bit is useful for drilling through the heavy gauge steel.

Weight 4 lbs

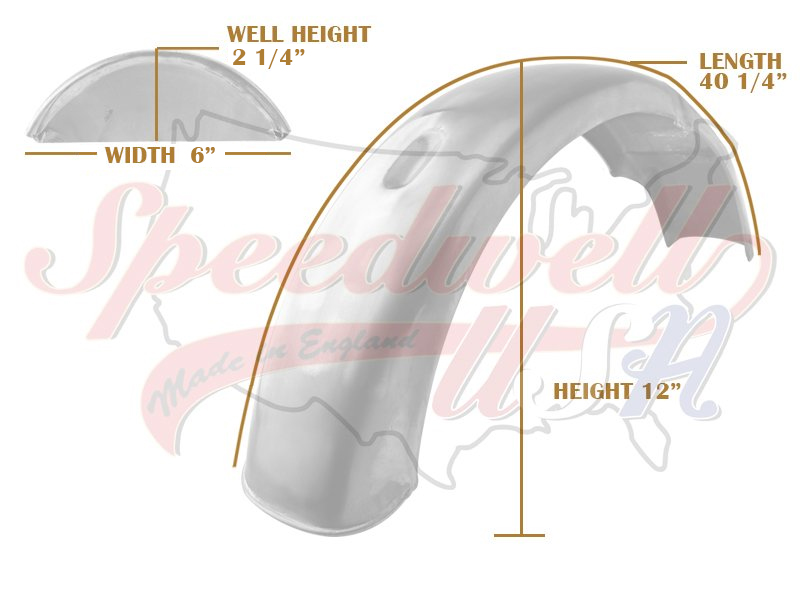

Dimensions 32 × 12 × 6 in
